MEA® Box Channel

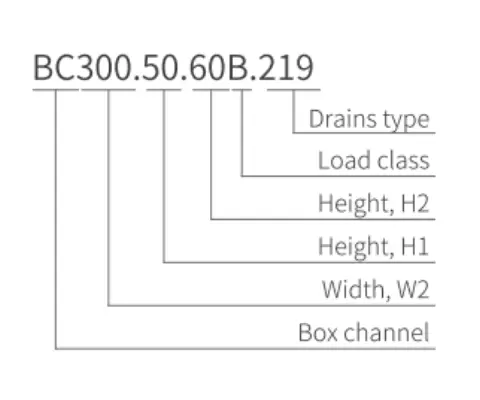

- Model: BC300.50.60B.219
- Weld-Free Joints
- Edge Infill Stability

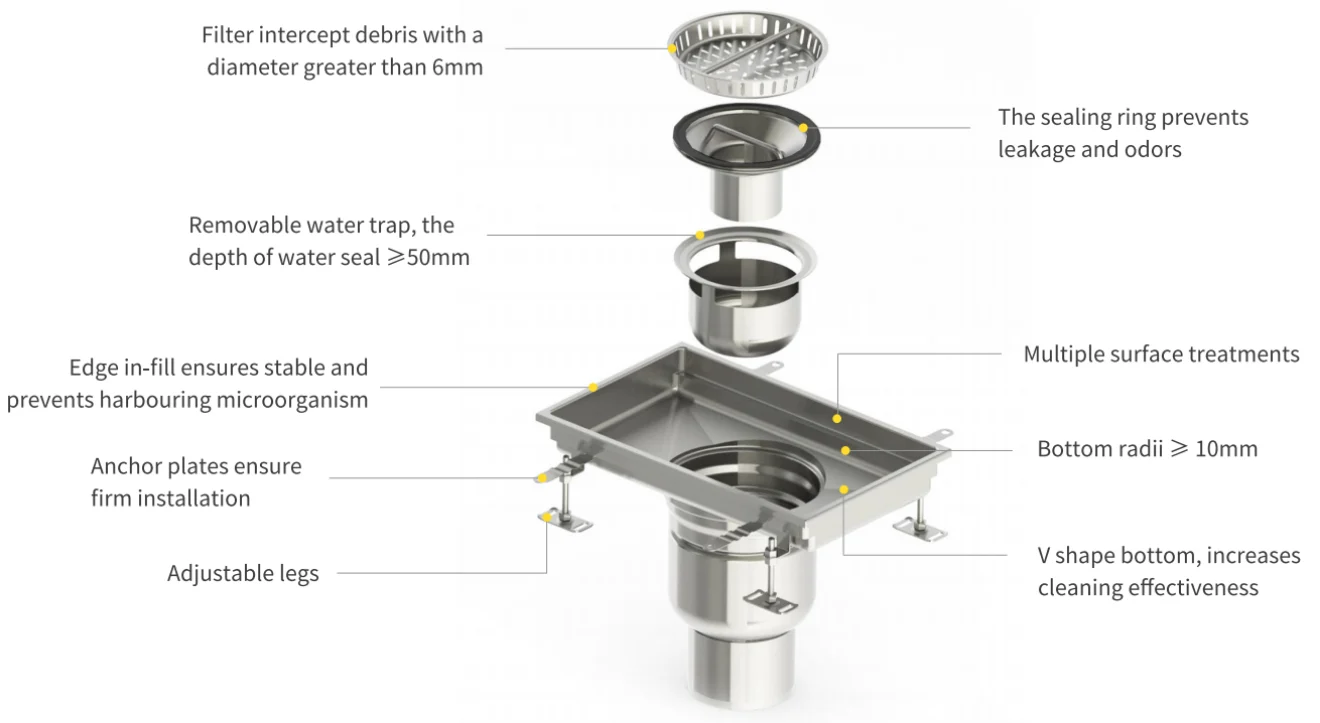

Made of stainless steel 304 or 316L, this drainage system features a slip-resistant grate, V-shaped bottom for better cleaning, and smooth surfaces for easy disinfection. Rounded internal (>3mm) and bottom (>10mm) corners enhance hygiene. Edge in-fill ensures stability, and various outlet units with filters and water traps are available. Custom sizes supported.

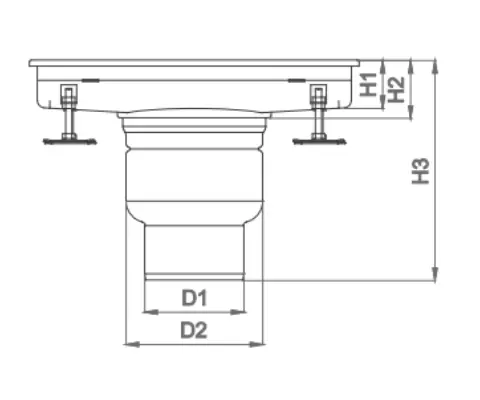

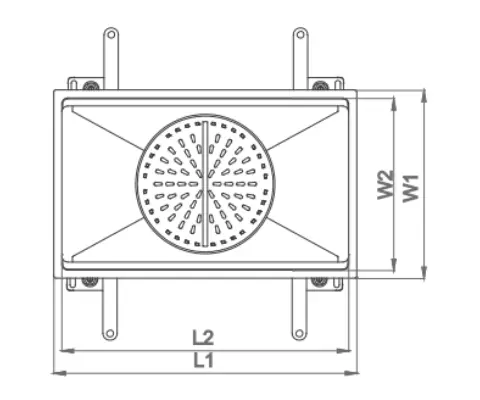

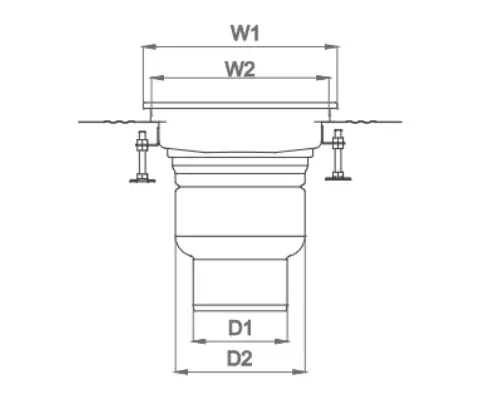

Specifications
| Model No. | BC300.50.60B.219 |
| L1 | 525 mm |
| L2 | 500 mm |
| H1 | 50 mm |
| H2 | 60 mm |
| H3 | 320 mm |
| W1 | 328 mm |
| W2 | 300 mm |
| D1 | 159 /108 mm |
| D2 | 219 mm |
| t | 1.5 mm |
| Water Trap | WT217 |
| Filter | B237 |
| Material | 304/316L |
For comprehensive information, please see the document available for download below.
-
Description
Product Characteristic
- Stainless steel 304 or 316L
- Slip resistant gratings
- Internal radii ≥ 3mm, bottom radii ≥ 10mm
- V shape bottom, increases cleaning effectiveness
- Edge in-fill, ensures stable
- Wide variety of outlet units, with filter and water trap
- Smooth surface, easy to clean and disinfect
- Customizable size
