MEA® Full Disposal Grease Separator
- Model: GS-2W
- Easy Maintenance
- Efficient Cleaning
The MEA® Full Disposal Grease Separator features an integrated cleaning device and agitator, manual/automatic control, and an enclosed design to prevent odors. Double sightglasses enable easy monitoring, while the patented easy-clean design ensures simple operation and low maintenance.
Specifications
| Model No. | GS-2W |
| Nominal Size | 2 L/S |
| Inlet DN | 100 mm |
| Outlet DN | 100 mm |
| Vent DN | 100 mm |
| L1 | 2010 mm |
| L2 | 1710 mm |
| W | 1146 mm |
| H1 | 1515 mm |
| H2 | 1343 mm |
| H3 | 1095 mm |
| H4 | 1002 mm |
| Weight | 514 kg |
| Volume | 745 L |
For comprehensive information, please see the document available for download below.
-
Description
Product Characteristics
- Chamber thickness 2.5mm, durable
- Integrated separation chamber
- Enclosed running, no odor
- Double sightglass for grease and sludge
- Cleaning device and agitator
- Manual/automatic control mode
- Simple operation and maintenance
- Patented appearance, easy to clean
Product Accessories
- Made of stainless steel
- 400mm manhole
- DN100 vent port
- Double sightglass for grease and sludge, with manual cleaning handle
- Cleaning device and agitator
- Cleaning device with centrifugal pump
- DN65 disposal device, pump with cutting vanes
- Control cabinet

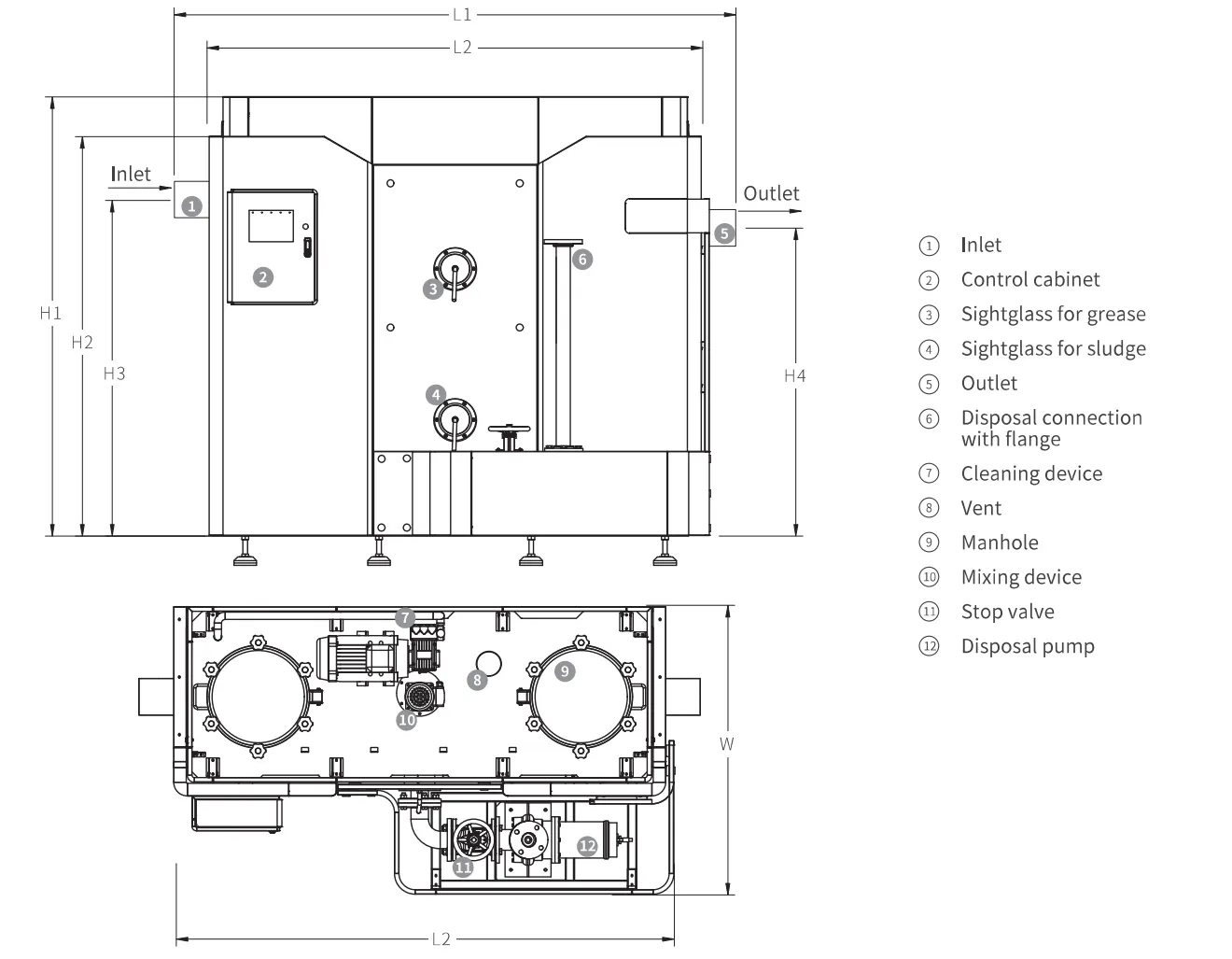

Product Size
